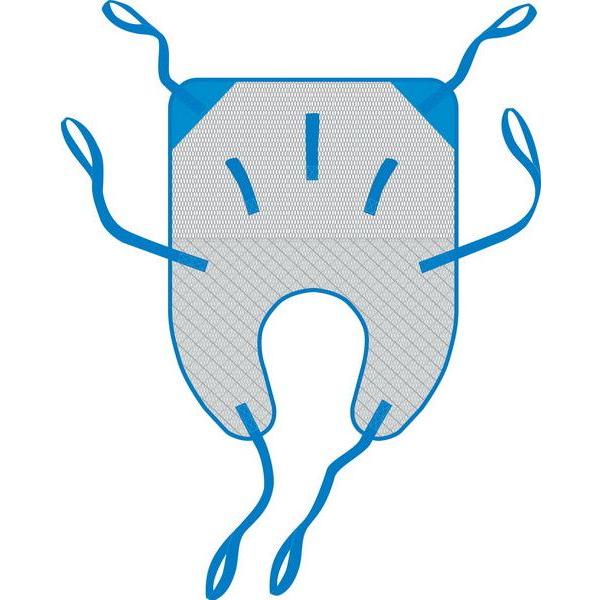

Arjo Loop Quick Fit Sling - Without Head Support

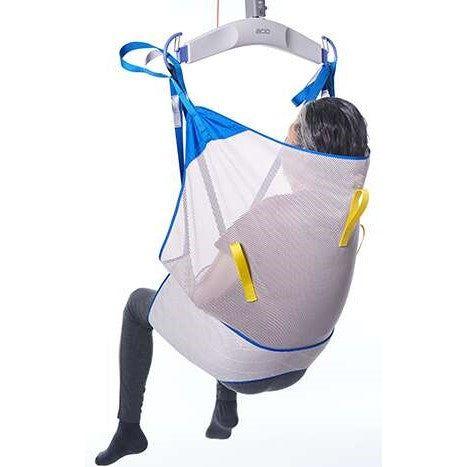

The Loop quick fit sling - without head support is a general purpose total lift sling. It is used to lift residents/patients from the bed, wheelchair and off the floor. This sling can be used for residents/patients with limited upper body function, but with good head control as head support is not provided by the sling.
Selecting the most appropriate sling is important to ensure it is suitable for the patient/resident, for the type of transfer required and compatible with the lift being used.
This sling is intended for passive transfers of patients/residents with limited ability to move and require full or partial body support during transfer.
The sling is used with passive lifting devices to transfer patients in a seated position to and from the bed, chair, bathroom, wheelchair, hygiene device and floor.
- Sling designed with increased padding through the seat and thighs
- Longer straps at the legs allow for extra room to pull straps through for patients/residents with larger hips and thighs
- Provides additional support at the hips
- The mesh fabric allows for bathing and showering activities as the material allows water to pass easily through the sling
- Positioning at the coccyx allows for simple application and removal
- Due to its positioning at the coccyx, can be used for hygiene purposes
The sling should be used together with Arjo lift devices (loop attachment) in accordance with the Allowed Combinations section in the Instructions for Use.
Compatible Lifts
Floor lifts
• Maxi 500
• Maxi Twin
• Maxi Move
Ceiling lifts
• Maxi Sky 440
• Maxi Sky 2 Series
• Maxi Sky 2 Plus (Single mode)
Size Chart
Specifications
Product Information | |
---|---|
Article Number | TIR |
Max safe working load kg | 272 kg |
Max safe working load lb | 600 lb |
Available Sizes | S, M, L |
Expected Service Life | 2 Years |
Expected Shelf Life | 5 years |
Washing Temperature | 80° C |
Tumble Dry Temperature | NO TUMBLE DRY |
